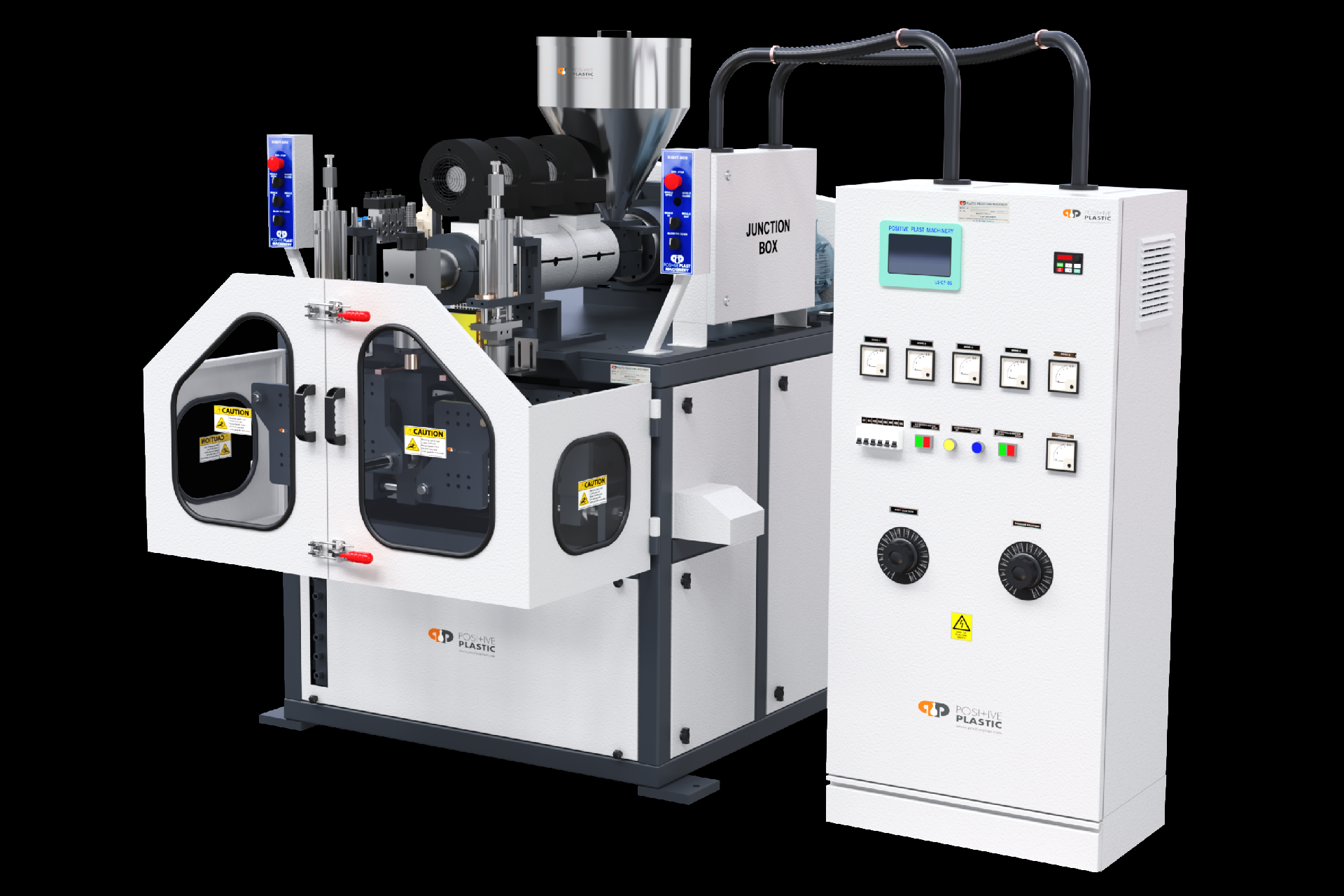

Double Station Blow Moulding Machine

DOUBLE STATION

BLOW MOULDING MACHINE

50 ML TO 5 LTR

FEATURES

  • Environmentally friendly lubricants usages
  • Reduced energy consumption
  • Economical investment
  • Increases stacking load
  • Master batch Saving

Double Station Blow Moulding Machine

Positive Plast Machinery is a well-established name in the plastic processing industry, offering advanced and reliable solutions since 2012. With over 13 years of experience in manufacturing blow moulding machines, we have earned a strong reputation as a trusted Plastic Blow Moulding Machine Manufacturer in India. Based in Ahmedabad, Gujarat, we cater to a wide range of industries by delivering high-performance machinery that ensures productivity, durability, and cost efficiency.

Our Double Station Blow Moulding Machine is designed to meet the growing demands of high-volume plastic container production. As a leading Double Station Blow Moulding Machine Manufacturer, Positive Plast Machinery focuses on precision engineering and robust construction to ensure consistent output and long service life. This machine supports container sizes from 50 ML to 5 LTR, making it an ideal solution for manufacturing bottles, containers, and jerry cans used in chemical, pharmaceutical, food, lubricant, and household product industries.

The Double Station Blow Moulding Machine enables simultaneous moulding operations, significantly increasing production capacity while maintaining uniform product quality. This efficiency makes it an economical investment for manufacturers aiming to expand output without compromising quality. It is widely preferred as a 2 Liter Blow Molding Machine for medium-sized containers and as a 5 Litre Jerry Can Blow Moulding Machine for larger packaging applications.

Energy efficiency is a key feature of our Plastic Blow Moulding Machine. The optimized design ensures reduced energy consumption, helping manufacturers lower operational costs and improve overall profitability. Additionally, the use of environment-friendly lubricants supports sustainable manufacturing practices while enhancing machine performance and component longevity.

Another major advantage of this machine is master batch saving, which helps reduce raw material wastage and ensures consistent color distribution across products. This feature not only improves product aesthetics but also results in significant cost savings over long-term production runs. The machine is also engineered to increase stacking load, producing containers with better structural strength that can withstand transportation and storage requirements.

As a reputed Plastic Blow Moulding Machine Manufacturer in Ahmedabad, Positive Plast Machinery follows strict quality control measures and uses premium components to deliver machines that perform reliably even under continuous industrial use. Our expertise and customer-focused approach have positioned us as a preferred Double Station Blow Moulding Machine Manufacturer across India and international markets.

Whether you require a compact solution for small containers or a robust system for heavy-duty applications, our Plastic Blow Moulding Machine range is designed to meet diverse production needs. Choose Positive Plast Machinery for advanced technology, economical investment, and long-term reliability in blow moulding solutions.

TECHNICAL SPECIFICATION

MODEL UNIT 250/H/2 500/H/2 1000/H/2 2000/H/2 3000/H/2 5000/H/2
EXTRUDER Screw Diameter MM 40 45 55 65 75 90
L.D. Ratio L/D 22:1 22:1 22:1 22:1 22:1 22:1
Blowing Capacity ML 250 600 1500 2000 5000 5000
Screw Speed R.P.M 0-75 0-75 0-75 0-75 0-75 0-75
Plasticizing Capacity kg/Hr. 14-16 18/20 30/32 48/50 73/75 95/100
Heating Zones NOS 5 5 5 6 7 8
Max. Die Dia HD 25 45 68 90 120 140
Max. Die Dia PVC 20 35 50 60 80 -
MOULD Mould Opening Stroke MM 125 150 185 200 225 300
Min Mould Thikness MM 135 180 180 205 235 255
Mould Day Light Opening MM 260 330 360 405 460 555
Mould Height MM 250 270 340 350 400 450
Mould Width MM 140 170 220 250 290 320
Max. Container Dia MM 60 75 125 150 170 200
Clamping Force TON 1.50 2.1 3 3 3.6 5.2
ELEC. Extruder Drive HP 5 7.5 10 20 25 50
Hydraulic Motor HP 5 5 7.5 7.5 10 10
Blower HP - 1.5 1.5 2.5 2.5 3
Heating load ( Head+Extruder) KW/HP 7.5/10 9/12 10.5/14 15/20 18.75/25 26.25/35
Total Power of M/C KW/HP 16.5/22 18.75/25 24.75/33 37.5/50 46.5/62 72.75/97
Main Cable Size (copper) Core/MM2 4/6 4/6 4/10 4/16 4/35 4/50
OPT Hydraulic Blowing - OPT. OPT. OPT. INC. INC. INC.
Hot Wire Cutter - INC. OPT. OPT. OPT. OPT. OPT.
V-Strip / Zebra Line - OPT. OPT. OPT. OPT. OPT. OPT.
Bobbing - OPT. OPT. OPT. OPT. OPT. OPT.
Parison Programmer Thick - Thin OPT. OPT. OPT. OPT. OPT. OPT.
Multi Cavity Head - OPT. OPT. OPT. OPT. OPT. OPT.
Bottom Blowing System - OPT. OPT. OPT. OPT. OPT. OPT.
DIM Control Panel Dimension (LXWxH) FT. 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3
Oil Tank Capacity LTR 125 150 180 240 240 240
Water Consumption Ltr./Min - 20-30 20-30 30-40 30-40 40-50 60-70
M/C Dimension (LxWxH) FT 7x6x8 8x6x9 9x7x10 10x7x11 11x8x11 13x9x13
Machine & Panel Weight TON 1.5 2 3 4.5 5.5 6.5
Air Requirement C.F.M 10 12 12 15 18 18
