Long Pattern Series Toys & Broom Handle Blow Moulding Machine

LONG PATTERN SERIES TOYS & BROOM HANDLE

BLOW MOULDING MACHINE

1 LTR TO 5 LTR

FEATURES

  • No to contamination
  • PCR usage
  • Raw Material Saving
  • Air Booster for quick cooling
  • easy for set up & maintenance

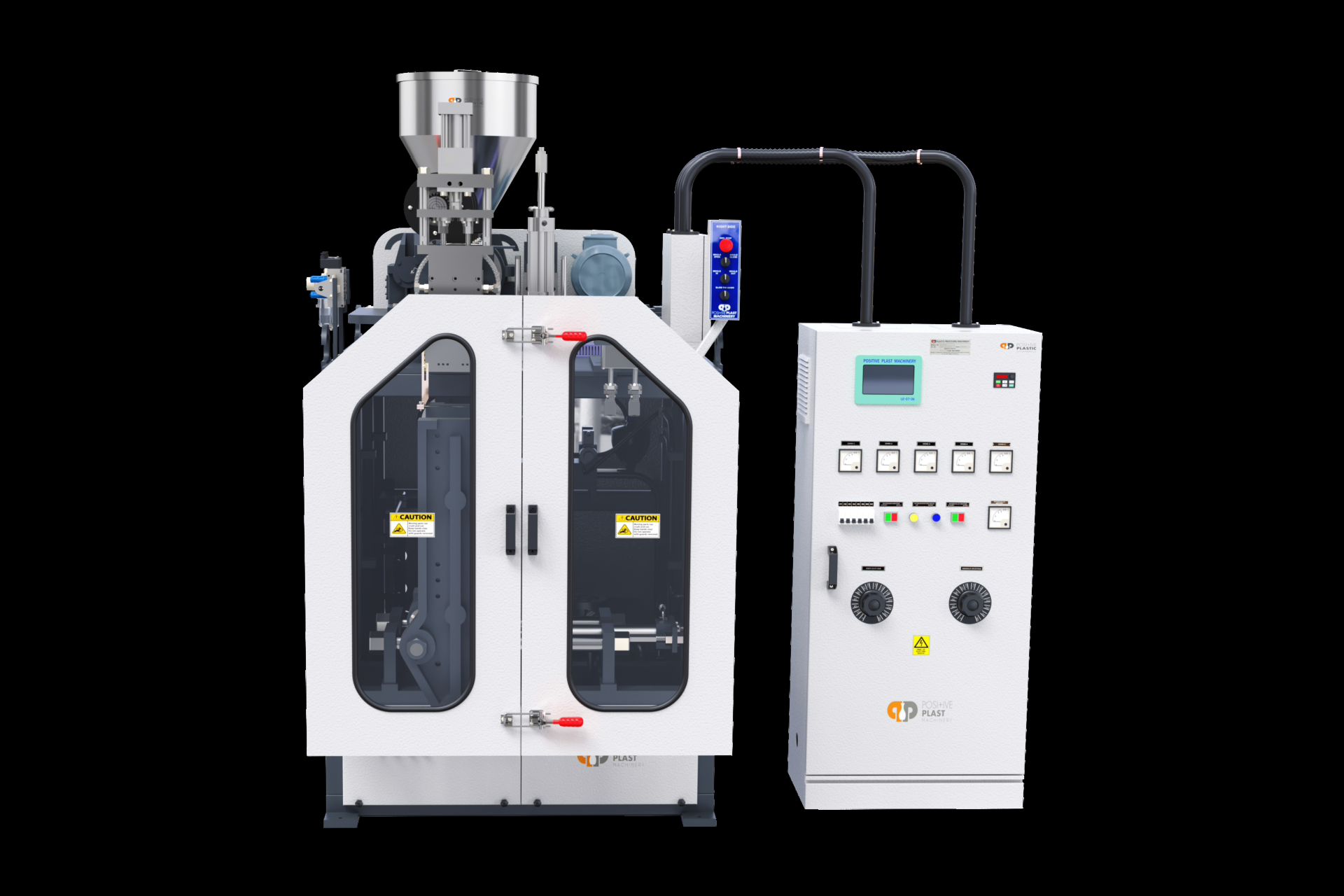

Long Pattern Series Toys & Broom Handle Blow Moulding Machine

Positive Plast Machinery is a renowned manufacturer of advanced plastic processing solutions, delivering reliable and high-performance machinery since 2012. With over 13 years of experience in manufacturing blow moulding machines, we have earned the trust of customers across India and international markets. Our commitment to quality engineering, innovation, and customer satisfaction positions us as a preferred choice in the plastic manufacturing industry.

Introducing the Long Pattern Series Toys & Broom Handle Blow Moulding Machine, a specialized solution designed for the efficient production of long, hollow plastic products. This machine supports container and product capacities ranging from 1 LTR to 5 LTR, making it ideal for manufacturing plastic toys, broom handles, and similar long-pattern components. It is widely recognized as a reliable Broom Handle Blow Moulding Machine for manufacturers focused on consistent quality and high productivity.

The Toys & Broom Handle Making Blow Moulding Machine is engineered with precision to ensure no contamination during the production process. This makes it especially suitable for applications where hygiene and product safety are critical. The machine is compatible with PCR (Post-Consumer Recycled) material usage, enabling manufacturers to adopt sustainable practices while maintaining excellent product strength and finish.

One of the major advantages of this Plastic Toys Blow Moulding Machine is its raw material saving design. Optimized material flow and accurate moulding reduce wastage, helping manufacturers lower production costs without compromising product quality. The machine is also equipped with an air booster system for quick cooling, which significantly reduces cycle time and increases overall production efficiency.

Ease of operation is a key focus of the Blow Moulding Machine for Toys developed by Positive Plast Machinery. The user-friendly design allows for easy setup and low-maintenance operation, reducing downtime and minimizing the need for specialized technical support. This ensures smooth daily production and long-term operational reliability, even in high-volume manufacturing environments.

Designed for durability and consistent performance, the toys blow moulding machine delivers uniform wall thickness, smooth surface finish, and excellent structural strength in finished products. Whether producing lightweight plastic toys or strong, durable broom handles, the machine ensures repeatable results across different production batches.

As a trusted manufacturer with over a decade of industry expertise, Positive Plast Machinery follows strict quality control standards and uses premium-grade components in all machines. Our Long Pattern Series Toys & Broom Handle Blow Moulding Machine is built to withstand continuous industrial use while maintaining high efficiency and product consistency.

By choosing Positive Plast Machinery, manufacturers gain access to advanced technology, economical production solutions, and long-term reliability. Our Broom Handle Blow Moulding Machine and Plastic Toys Blow Moulding Machine are ideal investments for businesses looking to expand their product range, improve efficiency, and meet market demands with confidence.

Partner with Positive Plast Machinery for innovative, efficient, and sustainable blow moulding machines for toys and broom handles that deliver superior performance and lasting value.

TECHNICAL SPECIFICATION

MODEL UNIT 1000/H/1(520MM) 1000/H/2(520MM) 2000/H/1(520MM) 2000/H/2(520MM) 3000/H/1(680MM) 5000/H/1(1000MM) 5000/H/2(1000MM)
EXTRUDER Screw Diameter MM 45 55 55 65 60 65 75
L.D. Ratio L/D 22:1 22:1 22:1 22:1 22:1 22:1 22:1
Blowing Capacity ML 1000 1500 2000 2000 3000 5000 5000
Screw Speed R.P.M 0-75 0-75 0-75 0-75 0-75 0-75 0-75
Plasticizing Capacity kg/Hr. 18-20 30/32 30/32 48/50 38/40 48/50 73/75
Heating Zones NOS 5 5 5 6 5 6 7
Max. Die Dia HD 60 68 90 90 120 140 120
Max. Die Dia PVC 40 50 60 60 80 60 80
MOULD Mould Opening Stroke MM 185 185 200 200 225 300 225
Min Mould Thikness MM 180 175 205 205 255 255 235
Mould Day Light Opening MM 360 325 360 405 460 555 555
Mould Height MM 340 550 550 550 680 1000 1000
Mould Width MM 220 220 250 250 290 320 320
Max. Container Dia MM 125 125 150 125 170 200 170
Clamping Force TON 2.2 3 3.1 3 3.6 5.2 5.2
ELEC. Extruder Drive HP 7.5 10 10 20 15 20 25
Hydraulic Motor HP 5 7.5 5 7.5 7.5 10 10
Blower HP 1.5 1.5 1.5 2.5 1.5 2.5 2.5
Heating load ( Head+Extruder) KW/HP 9/12 10.5/14 10.5/14 15/20 12/16 15/20 18.75/25
Total Power of M/C KW/HP 18.75/25 23.25/31 23.25/31 37.5/50 30/40 39/52 46.5/62
Main Cable Size (copper) Core/MM2 4/6 4/10 4/10 4/16 4/16 4/25 4/25
OPT Hydraulic Blowing - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
Hot Wire Cutter - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
V-Strip / Zebra Line - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
Bobbing - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
Parison Programmer Thick - Thin OPT. OPT. OPT. OPT. OPT. OPT. INC.
Double / Triple Head - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
Bottom Blowing System - OPT. OPT. OPT. OPT. OPT. OPT. OPT.
DIM Control Panel Dimension FT. 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.3X5.3 1.7X2.5X5.3 1.7X2.5X5.3 1.7X2.5X5.3
Oil Tank Capacity LTR 125 180 150 180 180 200 240
Water Consumption Ltr./Min - 30-40 30-40 30-40 30-40 40-50 60-70 40-50
M/C Dimension (LxWxH) FT 9X6X10 9X6X10 9X6X10 10X7X11 8X5X10 11X6X12 11X8X11
Machine & Panel Weight TON 1.8 3 2 4.5 2.6 4.2 5.5
Air Requirement C.F.M 10 15 12 12 15 15 20
